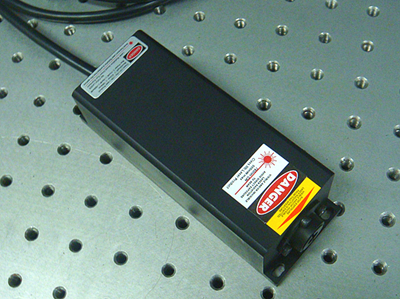

1064nm 1-500mW Laser
IR-1064-500-T -----------------------------------------------------------------------
|
Features
|
|
|||
|
Excellent Beam Quality
|
.
|
 |
||
|
High Stability
|
<3%
|
|||
|
|
||||
|
Parameter
|
Symbol
|
Range
|
||
|
Output Power (CW)
|
Po
|
1-500 mW
|
||
|
Operation Temp.(1)
|
Topr
|
-0°C-45°C
|
||
|
Storage Temp.
|
Tstg
|
-40°C-85°C
|
||
Note:（1）Box temperature
Specification ------------------------------------------------------------------------------
|
Parameter
|
Operation Codition
|
Symbol
|
Min.
|
Typical
|
Max.
|
Unit
|
|
Power (CW)
|
@PO
|
PO
|
.
|
. |
500
|
mW
|
|
Power Stability
|
2hrs
|
Ps
|
.
|
.
|
3
|
%
|
|
Center wavelength
|
@PO
|
λc
|
.
|
1064
|
.
|
nm
|
|
Spectra Band Width
|
@PO
|
FWHM
|
.
|
2
|
.
|
nm
|
|
Beam Diameter
|
1/e2, Full angle
|
D
|
.
|
1
|
.
|
mm
|
|
Beam Divergence
|
1/e2, Full angle
|
Div
|
.
|
2
|
.
|
mrad
|
|
Spot Stability
|
25°C
|
.
|
.
|
.
|
0.05
|
mrad
|
|
Warm Time
|
@PO
|
Tw
|
.
|
.
|
5
|
min
|
|
Noise
|
RMS(10Hz-20MHz)
|
N
|
.
|
. |
%
|
|
|
Life time (2)
|
@PO
|
MTBF
|
5,000
|
. |
.
|
Hrs
|
Note:(2) Laser Diode

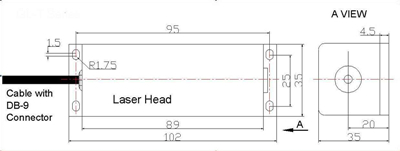

Package --------------------------------------------------------------------------
|
T-Type: With TEC，Separated Power Supply，Dimnsion: 35x35x102mm,1-500mW
|
|
 |
 |
