Multi-Mode Fiber Coupling 650nm Laser Series



eatures
 .
 Muiti-Mode Fiber Output
 .

 Power stability
 <3%
 Absolute Maximum Rating
Parameter
Symbol
Requirement
 Output Power (CW)
Po
 1-600 mW
 Operating temperature (1)
Topr
-0°C--45°C
 Storage Temperature
Tstg
 -40°C--85°C



Note: (1): Case Temperature
Optical Performance and Characters
Parameter
Condition
Symbol
Min
Typ
Max
Unit
Output Power (CW)
@PO
PO
.
600
.
mW
Power stability
2hrs
Ps
.
.
3
%
Central Wavelength
@PO
λc
.
650
.
nm
Spectral Line Width
@PO
FWHM
.
2
.
nm
Fiber Cord diameter
.
200um/NA=0.22(fiber specification is optional)
Fiber Length Length
.
.
.
100
.
cm
Fiber Connector
.
.
FC/ST/SMA905
.
Warm up time
@PO
Tw
.
.
5
min
Noise
RMS(10Hz-100MHz)
N
.
1
.
%
Expected Life Time (2)
@PO
MTBF
.
10,000
.
Hrs
Note:   (2): laser diode
Package Dimensions

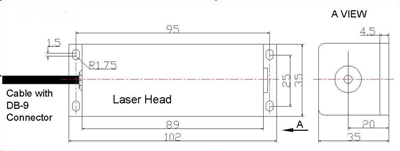

 T-Type: with Temperature Stabilized,Laser Driver Separated35x35x102mm Package
 T7-Type: with Temperature Stabilized,  Laser Driver Included49x42x140mm Package
 F-Type, Laser and driver separated, Laser Head no TEC ,Phi20x60mm Package
