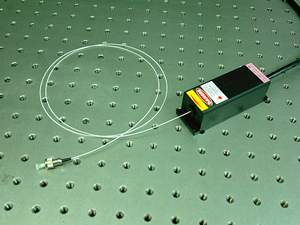

Single Mode Fiber or Polarization Maintained Fiber Output 808nm Laser Series
Features
|

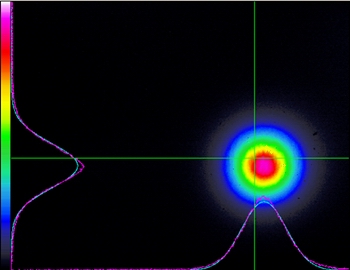

Typical Laser Beam Profiler
|
|||
SM /PM Fiber Output
|
.
|
|||
High Beam Quality
|
TEM00
|
|||
Absolute Maximum Rating
|
||||
Parameter
|
Symbol
|
Requirement
|
||
Output Power (CW)
|
Po
|
1-60 mW
|
||
Operating temperature (1)
|
Topr
|
-0°C--45°C
|
||
Storage Temperature
|
Tstg
|
-40°C--85°C
|
Note: (1): Case Temperature
Optical Performance and Characters
Parameter
|
Condition
|
Symbol
|
Min
|
Typ
|
Max
|
Unit
|
Output Power (CW)
|
@PO
|
PO
|
.
|
60
|
.
|
mW
|
Power stability
|
2hrs
|
Ps
|
.
|
.
|
3
|
%
|
Central Wavelength
|
@PO
|
λc
|
.
|
808
|
.
|
nm
|
Spectral Line Width
|
@PO
|
FWHM
|
.
|
2
|
.
|
nm
|
Fiber Cord diameter
|
.
|
Single Mode Fiber or Polarization Maintained Fiber
|
||||
Fiber Length Length
|
.
|
.
|
.
|
100
|
.
|
cm
|
Fiber Connector
|
.
|
.
|
FC/APC
|
.
|
||
Warm up time
|
@PO
|
Tw
|
.
|
.
|
5
|
min
|
Noise
|
RMS(10Hz-100MHz)
|
N
|
.
|
1
|
.
|
%
|
Expected Life Time (2)
|
@PO
|
MTBF
|
.
|
10,000
|
.
|
Hrs
|
Note: (2): laser diode

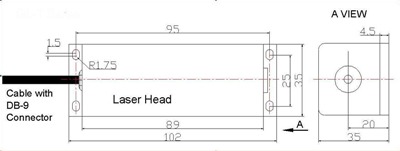

Package Dimensions
T-Type: with Temperature Stabilized,Laser Driver Separated,35x35x102mm Package
|
|
T7-Type: with Temperature Stabilized, Laser Driver Included,49x42x140mm Package
|
|
F-Type, Laser and driver separated, Laser Head no TEC ,Phi20x60mm Package
|
|
