405nm Diode Laser
DL-405-200-T------------------------------------------------------------------------
|
Features
|
.
|
|||
|
Power stability
|
<3%
|
 |
||
|
Ellipse Beam sport
|
||||
|
Applications
|
||||
|
.
|
||||
|
Absolute Maximum Rating
|
||||
|
Parameter
|
Symbol
|
Requirement
|
||
|
Output Power (CW)
|
Po
|
1-200 mW
|
||
|
Operating Temperature (1)
|
Topr
|
-0°C--40°C
|
||
|
Storage Temperature
|
Tstg
|
-40°C--85°C
|
||
Note: (1): Case Temperature
Optical Performance and Characters
|
Parameter
|
Condition
|
Symbol
|
Min
|
Typ
|
Max
|
Units
|
|
Output Power (CW)
|
@PO
|
PO
|
.
|
200
|
.
|
mW
|
|
Power stability
|
2hrs
|
Ps
|
.
|
.
|
3
|
%
|
|
Central Wavelength
|
@PO
|
λc
|
.
|
405
|
.
|
nm
|
|
Spectral Line Width
|
@PO
|
FWHM
|
.
|
2
|
.
|
nm
|
|
Beam diameter
|
1/e2, Full angle
|
D//
|
.
|
2.5
|
.
|
mm
|
|
D┴
|
.
|
1
|
.
|
|||
|
Beam divergence
|
1/e2, Full angle
|
Div//
|
.
|
0.5
|
.
|
mrad
|
|
Div┴
|
.
|
1
|
.
|
|||
|
Pointing stability
|
25°C
|
.
|
.
|
.
|
0.05
|
mrad
|
|
Warm up time
|
@PO
|
Tw
|
.
|
.
|
5
|
min
|
|
Noise
|
RMS(10Hz-100MHz)
|
N
|
.
|
1
|
.
|
%
|
|
Expected Life Time (2)
|
@PO
|
MTBF
|
.
|
10,000
|
.
|
Hrs
|
Note: (2): laser diode
Package Dimensions--------------------------------------------------------------------------
|

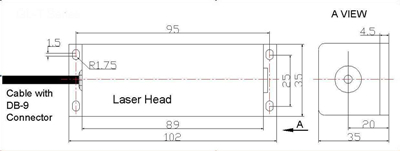

T-Type: with Temperature Stabilized，Laser Driver Separated，35x35x102mm Package
|
|
 |
 |
|

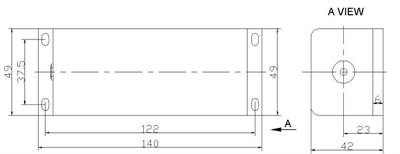

T2-Type: with Temperature Stabilized，Laser Driver Separated，49x42x140mm Package
|
|
 |
 |
|

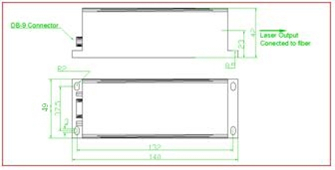

T7-Type: with Temperature Stabilized,Laser Driver Included，49x42x140mm Package
|
|
 |
 |
